First, use
& nbsp; TD75-purpose fixed belt conveyor (the TD75 type) conveying capacity, simple structure, easy maintenance, low cost, versatility, etc. and is widely used in metallurgy, coal, transportation, building materials, mining, chemical industry, ports and other departments, used to transport bulk materials or items. With process requirements can be arranged according to horizontal or inclined types.
& nbsp; the temperature of the material transported lock TD75 type belt conveyor below 50 ℃, the ambient temperature between + 40 ℃ ~ -25 ℃. For proof, waterproof, anti-corrosion and heat, cold and other special requirements of the occasion, should take appropriate protective measures separately.
Second, the technical parameters of the special and major
& nbsp; TD75 type belt conveyor capacity of materials in 2.5T / M3 less.
& nbsp; This series can be divided according to bandwidth: 500,650,800,1000,1200,1400mm six specifications.
& nbsp; by belt speed can be divided into: 0.8,1.0,1.25,1.6,2.0,3.15,4.0m / s eight kinds.

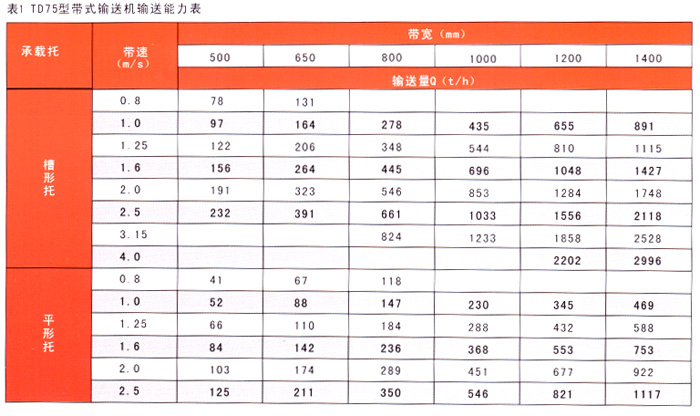

& nbsp; table feed amount is in the material capacity r = 1.0t / m3, conveyor inclination 0 ° ~ 7 °, the angle of repose for the calculation of moving material under the conditions of 30 ° come.
 |
